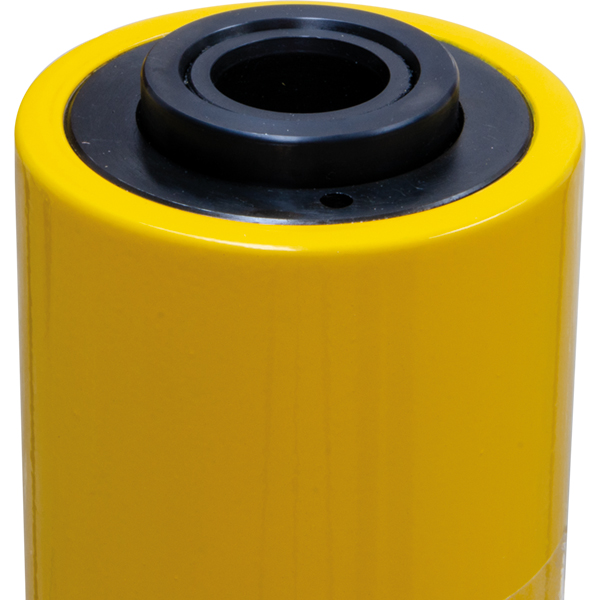

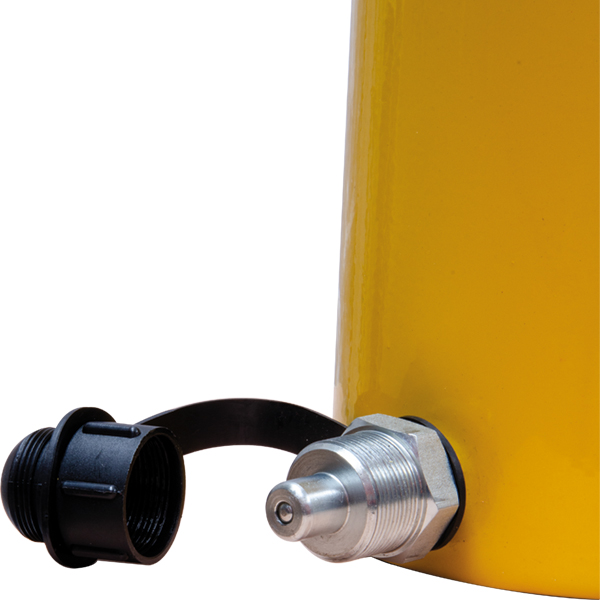

Hollow plunger design allows for both push & pull forces Single-acting, with hydraulic advance and spring return Manufactured from high-strength, durable alloy steel Anti-corrosive baked enamel finish With R2 3/8” Male quick connector and protective dust cap
Stroke: 150mm Effective area: 47.7cm2 Oil capacity: 715cm3 Closed Height: 312mm Extended Height: 462mm Outside Diameter: 114mm Inside Diameter: 90mm Piston rod Diameter: 63mm Piston Rod Bore: 33mm Hose connection: 3/8” Weight: 20kg
Individual Product Details
Height: 370mm - Width: 200mm - Length: 200mm - Weight: 20kg
