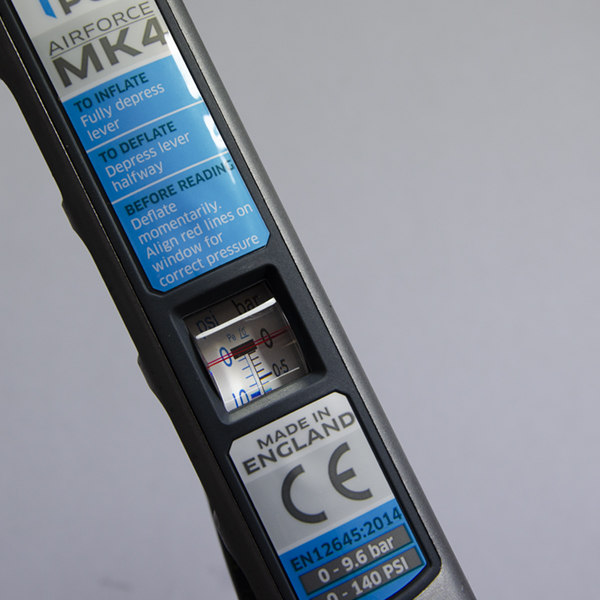

Accuracy standards tested to over 400,000 cycles at 100% accuracy Lighter weight gauge body weighs 923 g - lightest gauge tested New valve mechanism Simplified 2 stage mechanism design Complies with: EC Directive 86/217/EEC & BS EN 12645:1999 Calibration: Pressure gauge range: 0-138lbf/in2 & 0-9.6bar (Calibration certificate included)
Supply Pressure: Max 13.8bar Min 6.9bar Inflation flow rate: 500 l/min / 18cfm
Outer Packaging Details
Height: 300mm - Width: 375mm - Length: 375mm - Box Qty: 10mm - Weight: 10.65kg
Packaged Details
No of Inner Boxes: 10mm - Qty in Each Inner: 1
Individual Product Details
Height: 130mm - Width: 65mm - Length: 340mm - Weight: 1kg
