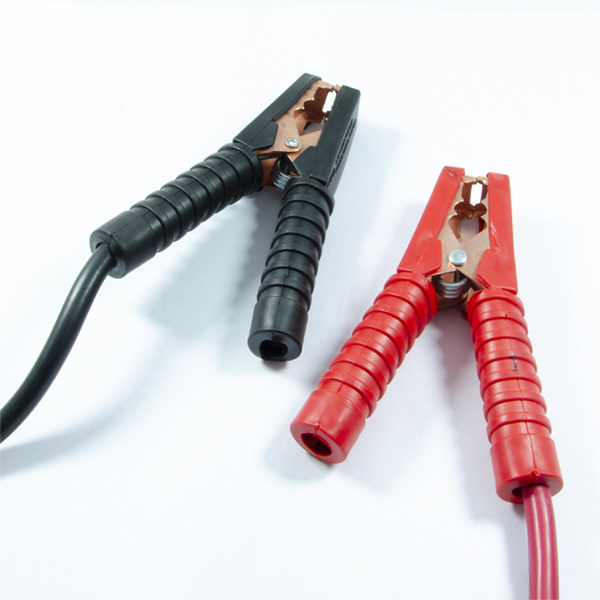

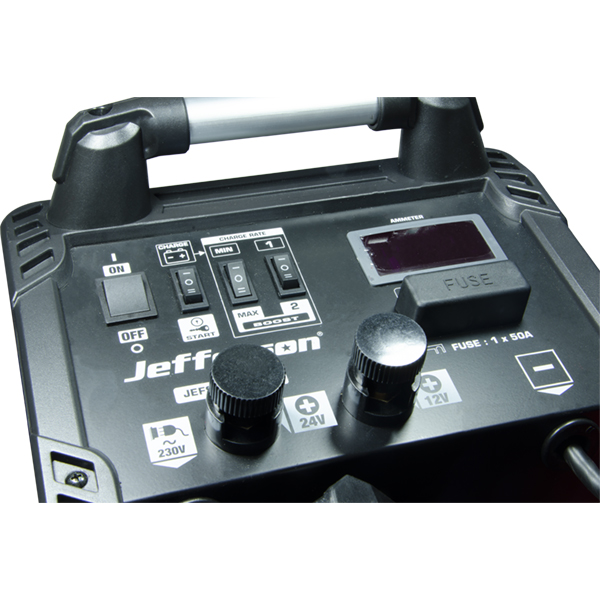

230A single phase battery / starter charger with sturdy plastic and steel housing and carry handle 12/24V battery voltage Well ventilated to help maintain low temperatures during operation Large ammeter display showing rate of charge Dash-mounted fuse and polarity protection Variable charging rate Supplied with a pair of fully insulated positive and negative charging clamps which can be stored within the equipment casing Suitable for charging regular and low maintenance batteries between 80 - 1000Ah Safety class DIN40530: II
Input Voltage: 230V ~ 50Hz Input Power: 180 W Output Voltage: 12V / 24V Output Charge Peak (EN): 90A (70A) Output Start Peak (EN): 600A (350A) Input (Charge): 0.5A Input (Start): 4A Battery Capacity (Min - Max): 80 - 1000Ah Duty Cycle: 5 sec ON / 30 sec OFF @ 5 Cycles Fuse: 3 x 50A Plug: 13A Charging cables: 16mm x 2.0mm Power cables: 3x 1.5mm x 2.4m Weight: 20.0kg Dimensions: 330 x 260 x 720mm
Suitable for charging regular and low maintenance batteries between 80 - 1000Ah
Outer Packaging Details
Height: 340mm - Width: 270mm - Length: 730mm - Box Qty: 1mm - Weight: 22kg
Individual Product Details
Height: 350mm - Width: 285mm - Length: 790mm - Weight: 19.25kg
