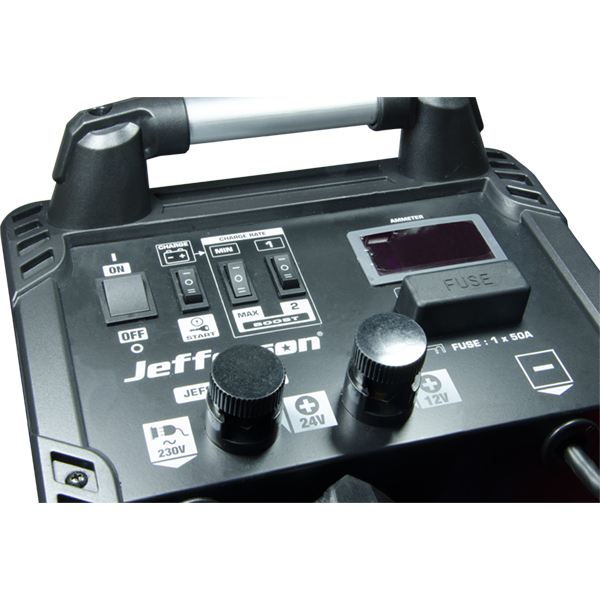

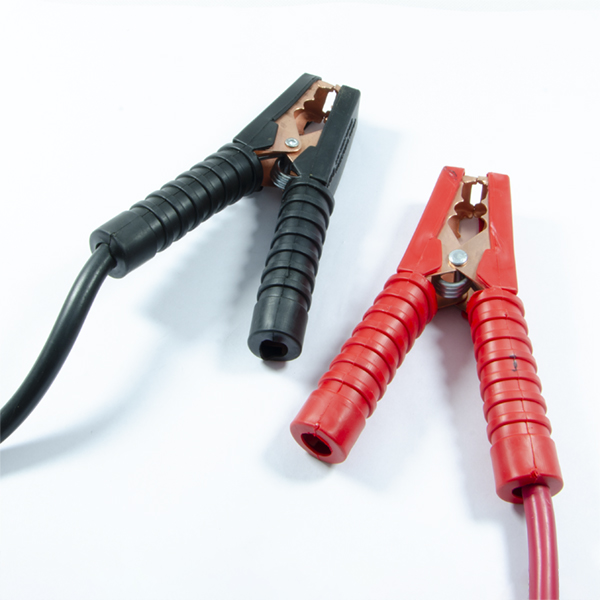

230A single phase battery / starter charger with sturdy plastic and steel housing and carry handle 12/24V battery voltage Well ventilated to help maintain low temperatures during operation Large ammeter display showing rate of charge Dash-mounted fuse and polarity protection Variable charging rate Supplied with a pair of fully insulated positive and negative charging clamps which can be stored within the equipment casing Suitable for charging regular and low maintenance batteries between 60 - 800Ah Safety class DIN40530: II
Input Voltage: 230V ~ 50Hz Input Power: 130 W Output Voltage: 12V / 24V Output Charge Peak (EN): 75A (30A) Output Start Peak (EN): 400A (300A) Battery Capacity (Min - Max): 60 - 800Ah Duty Cycle: 5 sec ON / 30 sec OFF @ 5 Cycles Charging Rates: 6 Fast Charge Timer: Yes Fuse: 2 x 50A Plug: 13A Charging cables: 14mm x 2.0m Power cable: 3x1.5mm x 2.4m Input (Charge): 0.4A Input (Start): 3A Weight: 15.0kgs Dimensions: 300 x 230 x 630mm
Suitable for charging regular and low maintenance batteries between 60 - 800Ah
Outer Packaging Details
Height: 310mm - Width: 240mm - Length: 640mm - Box Qty: 1mm - Weight: 16.5kg
Individual Product Details
Height: 290mm - Width: 250mm - Length: 680mm - Weight: 15.622kg
